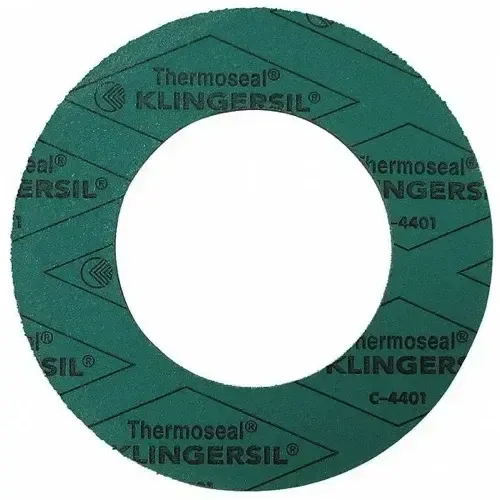

GASKET, KLNGR C4401, 2.000" 150# RF

13850RF062A0200 is a green Klingersil C-4401 Class 150 ring face Flange Gasket with a 2 inch nominal pipe size, a Class 150 pressure rating, and a thickness of 0.062 inch. In service, this flange gasket provides a replaceable sealing element at every flanged pipe connection. This item is further identified as NPS, 0.062 THK.

Klingersil C-4401 offers consistent thickness and density across the sheet, a calendered, compressed fiber structure bound with elastomer. This material stands up to hydrocarbons, a broad range of process chemicals, and steam and hot water. It is not the right choice where strong oxidizing acids in some grades or service beyond the published pressure-temperature envelope are present.

Common environments for this compound include steam and hot water systems, pulp and paper, and power generation.

Order part number 13850RF062A0200, sold individually. As always, verify media compatibility and operating conditions against the requirements of your specific application. APG supports cross-referencing from drawings, samples and competitor numbers when a listed size is not an exact fit.
