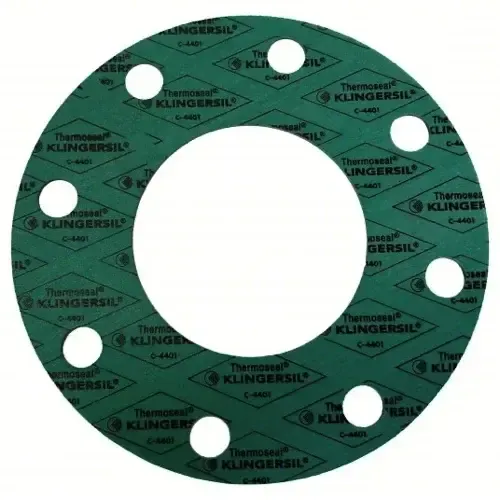

GASKET, KLNGR C4401, 2.000" 0.125 THK

This flange gasket is supplied in green Klingersil C-4401 Class 300/400/600 full face measuring a 2 inch nominal pipe size, a Class 300/400/600 pressure rating, and a thickness of 0.125 inch, catalogued under part number 13850FF125B0200FC. It seals a bolted flange connection across the full pressure rating of the class.

Klingersil C-4401 is valued for a calendered, compressed fiber structure bound with elastomer, consistent thickness and density across the sheet. Expect good resistance to a broad range of process chemicals, hydrocarbons, and elevated flange loads. Verify compatibility before use with strong oxidizing acids in some grades or service beyond the published pressure-temperature envelope.

Common environments for this compound include power generation, steam and hot water systems, and chemical processing.

Reference part number 13850FF125B0200FC when ordering; the item is sold individually. As always, verify media compatibility and operating conditions against the requirements of your specific application. For a size or compound outside the standard catalog, APG can quote from a print or sample.
