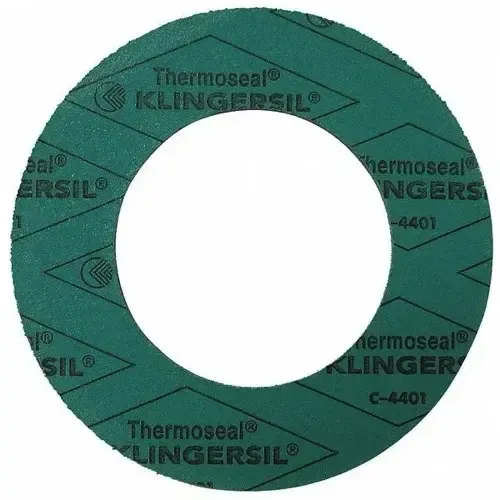

GASKET, KLNGR C4401, 2.500" 150# RF

This flange gasket is supplied in green Klingersil C-4401 Class 150 ring face measuring a 2.5 inch nominal pipe size, a Class 150 pressure rating, and a thickness of 0.125 inch, catalogued under part number 13850RF125A0250FC. It provides a replaceable sealing element at every flanged pipe connection. Supplementary detail from the product record: NPS, 0.125 THK.

Klingersil C-4401 is specified here for calendered, compressed fiber structure bound with elastomer, clean release and easy removal at teardown. The material holds up against a broad range of process chemicals, elevated flange loads, and hydrocarbons. Applications involving strong oxidizing acids in some grades or service beyond the published pressure-temperature envelope call for a different compound.

You will find this material specified across pulp and paper, power generation, and steam and hot water systems.

Order part number 13850RF125A0250FC, sold individually. Check the compound against your process media, pressure and temperature before committing to a design.
