*1/16 X 59" X 59" KLINGER C-4409

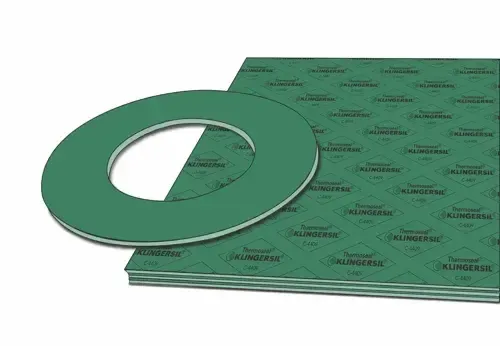

Ordered as 0KC4409062X59X59, this is a KLINGER®sil C-4409 Gasket Sheet measuring a thickness of 1/16 inch, a width of 59 inch, and a length of 59 inch. The gasket sheet lets a shop cut custom gaskets to any profile, eliminating lead time on non-standard shapes. Additional detail on this item: Nitrile Binder.

As a material, KLINGER®sil C-4409 delivers reliable sealing on flanges with modest surface finish, excellent torque retention and low creep relaxation. Expect good resistance to elevated flange loads, a broad range of process chemicals, and steam and hot water. Verify compatibility before use with service beyond the published pressure-temperature envelope or strong oxidizing acids in some grades.

It sees regular use in steam and hot water systems, power generation, and refining.

Stocked as 0KC4409062X59X59 and sold by the sheet. Check the compound against your process media, pressure and temperature before committing to a design. APG supports cross-referencing from drawings, samples and competitor numbers when a listed size is not an exact fit.
