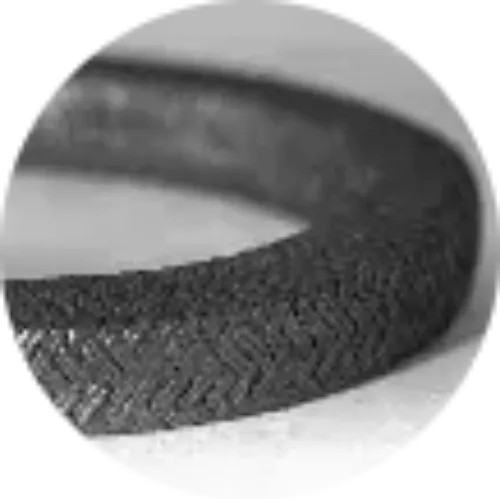

1/2" CARBON YARN WITH I.W. PACKING

APG stocks the 11820500-05, a Braided Inconel Wire Compression Packing with a 1/2 inch square cross section. A compression packing offers the most economical repairable shaft seal for pumps and valves. This item is further identified as 5 LB. Box - Approx. 28 FT.

It resists process media, shaft wear, and elevated temperature and pressure. Braided Inconel Wire offers a braided construction that conforms to the stuffing box, controlled leakage that lubricates and cools the shaft. Rated for service to approximately 1200°F. Exposure to over-tightening of the gland or running dry without flush will shorten service life.

It sees regular use in valves and agitators, water and process plants, and centrifugal and reciprocating pumps.

Order part number 11820500-05, sold individually. Unit weight is approximately 5 lb. Check the compound against your process media, pressure and temperature before committing to a design. APG can cross-reference from an existing part number, a drawing or a physical sample if this size is not an exact match.
