GASKET, KLNGR C4433, 12.00 , 150# FF

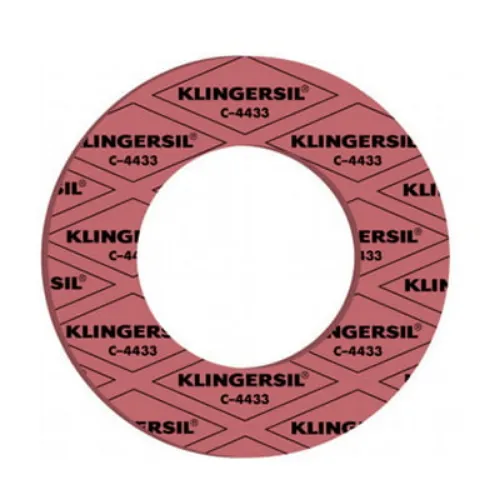

Ordered as 13C4433FF062A1200, this is a red Klingersil C-4433 Class 150 full face Flange Gasket supplied with a 12 inch nominal pipe size, a Class 150 pressure rating, and a thickness of 0.062 inch. The flange gasket compresses between two pipe flanges under bolt load to create a leak-tight joint. The catalog record notes: NPS, 0.062 THK.

Klingersil C-4433 is valued for a calendered, compressed fiber structure bound with elastomer, clean release and easy removal at teardown. The material holds up against hydrocarbons, elevated flange loads, and steam and hot water. It should not be specified for service in strong oxidizing acids in some grades or service beyond the published pressure-temperature envelope.

It sees regular use in chemical processing, steam and hot water systems, and refining.

13C4433FF062A1200 ships individually. Check the compound against your process media, pressure and temperature before committing to a design.
