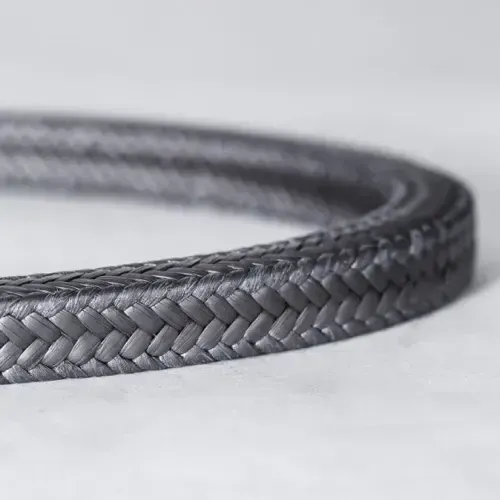

1/4" BRAIDED FLEXIBLE GRAPHITE PACKING

APG stocks the 11710250-01, a Braided Flexible Graphite Compression Packing supplied with a 1/4 inch square cross section. A compression packing is cut into rings and stacked in a stuffing box, then compressed by the gland to seal a rotating or reciprocating shaft. Additional detail on this item: 1 LB. Box - Approx. 30 FT.

The material holds up against very high temperature, steam, and most chemicals across the pH range. Braided Flexible Graphite is widely chosen for near-zero creep relaxation under load and exceptional temperature capability well beyond elastomeric materials.

Maintenance and OEM teams specify it across high-temperature process piping, steam and heat transfer systems, and exhaust and flue gas.

Stocked as 11710250-01 and sold individually. Unit weight is approximately 1 lb. Confirm chemical compatibility, pressure and temperature against your own application requirements before installing. If you need a size, durometer or compound that is not listed, APG can cross-reference from a print, a sample or a competitor part number.
