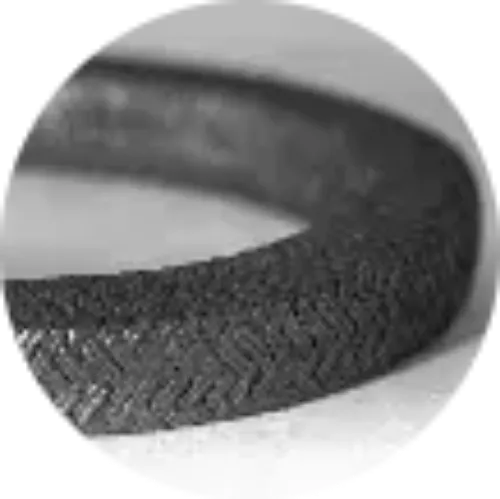

1/4" CARBON YARN WITH I.W. PACKING

Part number 11820250-01 is a Braided Inconel Wire Compression Packing with a 1/4 inch square cross section. A compression packing is cut into rings and stacked in a stuffing box, then compressed by the gland to seal a rotating or reciprocating shaft. Source specification: 1 LB. Box - Approx. 23 FT.

This material stands up to elevated temperature and pressure, process media, and shaft wear. That behavior comes from the compound itself: Braided Inconel Wire is specified for dependable service life when correctly adjusted, controlled leakage that lubricates and cools the shaft. Rated for service to approximately 1200°F. Applications involving over-tightening of the gland or running dry without flush call for a different compound.

Typical settings include water and process plants, valves and agitators, and centrifugal and reciprocating pumps.

This item is sold individually under part number 11820250-01. Unit weight is approximately 1 lb. Check the compound against your process media, pressure and temperature before committing to a design. Not finding the exact configuration you need? APG cross-references from prints, samples and competitor part numbers.
