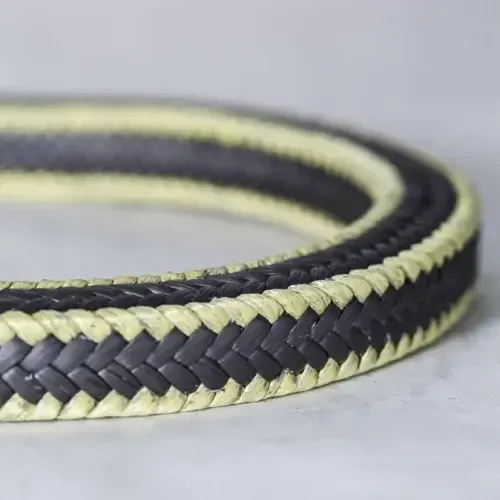

1/8" GFO GRAPHITE/PTFE PACKING

Part number 11800125-10 is a G.F.O. Packing Compression Packing supplied with a 1/8 inch square cross section. A compression packing offers the most economical repairable shaft seal for pumps and valves. Source specification: 10 LB. Box - Approx. 882 FT.

As a material, G.F.O. Packing delivers a braided construction that conforms to the stuffing box and field-cuttable rings for fast, inexpensive repacking. It resists shaft wear, process media, and elevated temperature and pressure. Rated for service to approximately 550°F. It is not the right choice where over-tightening of the gland or running dry without flush are present.

Common environments for this compound include valves and agitators, water and process plants, and centrifugal and reciprocating pumps.

Stocked as 11800125-10 and sold individually. Unit weight is approximately 10 lb. Check the compound against your process media, pressure and temperature before committing to a design. APG can cross-reference from an existing part number, a drawing or a physical sample if this size is not an exact match.
