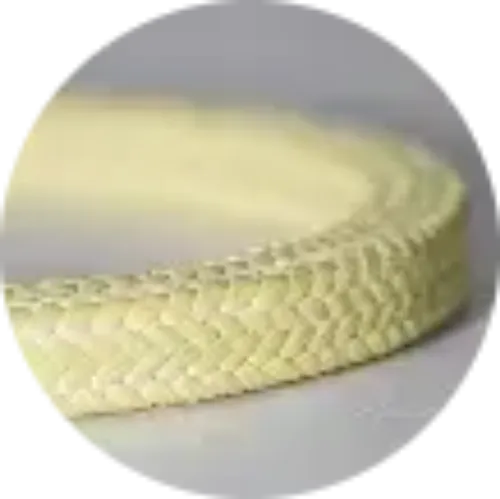

*1/8" NON-ASBESTOS ARAMID FIBER PACKING

Ordered as 11780125-10, this is an Aramid Filament Packing Compression Packing measuring a 1/8 inch square cross section. The compression packing is cut into rings and stacked in a stuffing box, then compressed by the gland to seal a rotating or reciprocating shaft. Supplementary detail from the product record: 10 LB. Box - Approx. 870 FT.

Expect good resistance to elevated temperature and pressure, shaft wear, and process media. That behavior comes from the compound itself: Aramid Filament Packing is specified for field-cuttable rings for fast, inexpensive repacking and dependable service life when correctly adjusted. Rated for service to approximately 500°F.

It sees regular use in centrifugal and reciprocating pumps, valves and agitators, and water and process plants.

Stocked as 11780125-10 and sold individually. Unit weight is approximately 10 lb. Confirm chemical compatibility, pressure and temperature against your own application requirements before installing.
