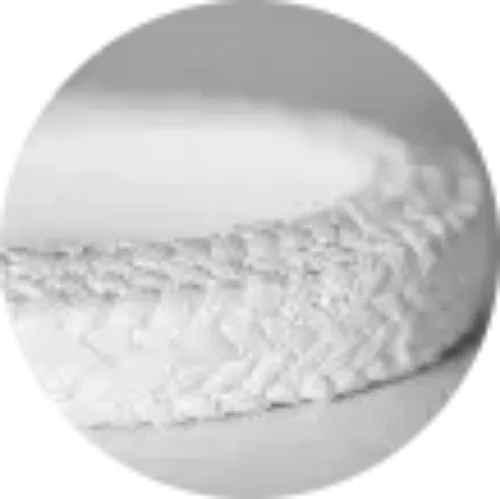

*1/8" TREATED PTFE YARN PACKING

Ordered as 11740125-10, this is a TFE Filament Compression Packing with a 1/8 inch square cross section. The compression packing provides field-serviceable shaft sealing that can be adjusted and topped up without disassembling the pump. Source specification: 10 LB. Box - Approx. 769 FT.

TFE Filament is specified here for non-stick, non-contaminating surface characteristics and very wide continuous service temperature range. The material holds up against oxidizing media, nearly all industrial chemicals, and steam. It should not be specified for service in elemental fluorine at temperature or molten alkali metals.

Typical settings include pharmaceutical and biotech, food and beverage, and chemical processing.

Order part number 11740125-10, sold individually. Unit weight is approximately 10 lb. Check the compound against your process media, pressure and temperature before committing to a design. APG supports cross-referencing from drawings, samples and competitor numbers when a listed size is not an exact fit.
