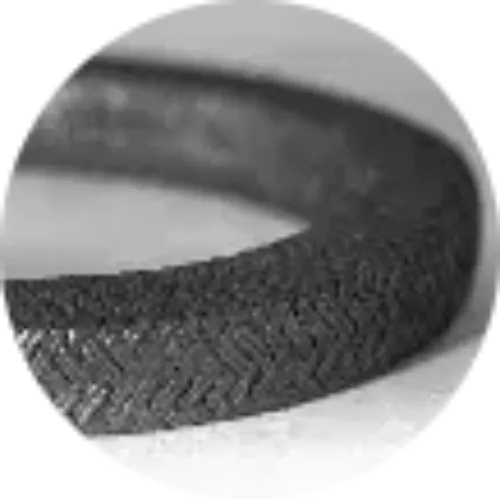

3/16" CARBON YARN WITH I.W. PACKING

The 11820187-05 is a Braided Inconel Wire Compression Packing with a 3/16 inch square cross section. This compression packing is cut into rings and stacked in a stuffing box, then compressed by the gland to seal a rotating or reciprocating shaft. The catalog record notes: 5 LB. Box - Approx. 234 FT.

The compound resists process media, elevated temperature and pressure, and shaft wear. Braided Inconel Wire is known for controlled leakage that lubricates and cools the shaft, field-cuttable rings for fast, inexpensive repacking. Rated for service to approximately 1200°F.

It sees regular use in water and process plants, mixers and rotary equipment, and valves and agitators.

Reference part number 11820187-05 when ordering; the item is sold individually. Unit weight is approximately 5 lb. Application requirements vary, so validate compatibility with your process conditions prior to installation.
