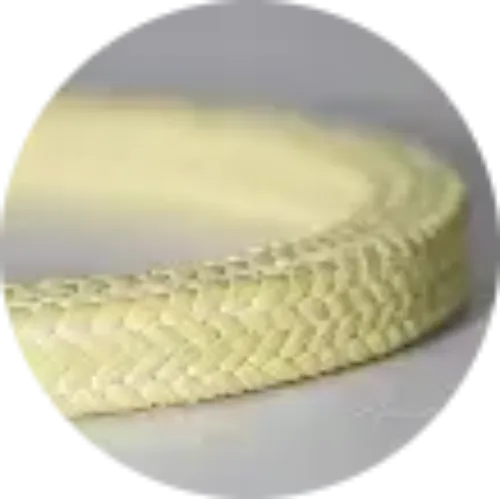

3/16" NON-ASBESTOS ARAMID FIBER PACKING

The 11780187-05 is an Aramid Filament Packing Compression Packing with a 3/16 inch square cross section. This compression packing seals the shaft while allowing controlled leakage that lubricates and cools the packing set. This item is further identified as 5 LB. Box - Approx. 215 FT.

Aramid Filament Packing is specified here for braided construction that conforms to the stuffing box and field-cuttable rings for fast, inexpensive repacking. Expect good resistance to process media, elevated temperature and pressure, and shaft wear. Rated for service to approximately 500°F. Applications involving over-tightening of the gland or running dry without flush call for a different compound.

Common environments for this compound include valves and agitators, mixers and rotary equipment, and water and process plants.

Stocked as 11780187-05 and sold individually. Unit weight is approximately 5 lb. Check the compound against your process media, pressure and temperature before committing to a design. APG can cross-reference from an existing part number, a drawing or a physical sample if this size is not an exact match.
