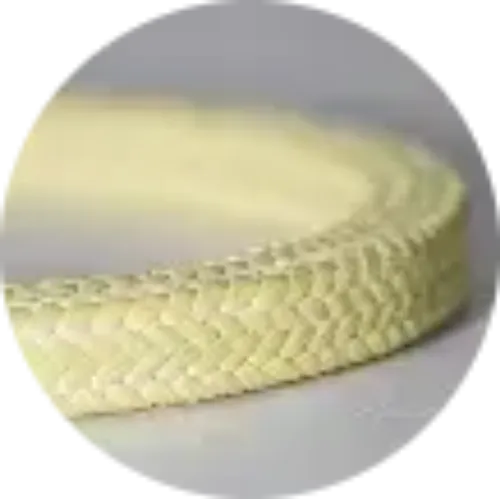

3/8" NON-ASBESTOS ARAMID FIBER PACKING

The 11780375-05 is an Aramid Filament Packing Compression Packing measuring a 3/8 inch square cross section. This compression packing provides field-serviceable shaft sealing that can be adjusted and topped up without disassembling the pump. This item is further identified as 5 LB. Box - Approx. 56 FT.

Aramid Filament Packing is specified here for braided construction that conforms to the stuffing box and dependable service life when correctly adjusted. It resists process media, elevated temperature and pressure, and shaft wear. Rated for service to approximately 500°F. Applications involving over-tightening of the gland or running dry without flush call for a different compound.

Common environments for this compound include mixers and rotary equipment, valves and agitators, and centrifugal and reciprocating pumps.

Stocked as 11780375-05 and sold individually. Unit weight is approximately 5 lb. Confirm chemical compatibility, pressure and temperature against your own application requirements before installing. APG supports cross-referencing from drawings, samples and competitor numbers when a listed size is not an exact fit.
