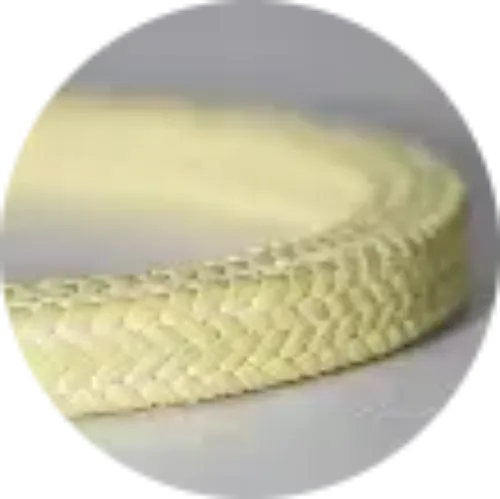

3/8" NON-ASBESTOS ARAMID FIBER PACKING

APG stocks the 11780375-01, an Aramid Filament Packing Compression Packing built to a 3/8 inch square cross section. A compression packing is cut into rings and stacked in a stuffing box, then compressed by the gland to seal a rotating or reciprocating shaft. Supplementary detail from the product record: 1 LB. Box - Approx. 12 FT.

The material holds up against elevated temperature and pressure, shaft wear, and process media. That behavior comes from the compound itself: Aramid Filament Packing is widely chosen for dependable service life when correctly adjusted and a braided construction that conforms to the stuffing box. Rated for service to approximately 500°F. It is not the right choice where running dry without flush or over-tightening of the gland are present.

It sees regular use in water and process plants, mixers and rotary equipment, and valves and agitators.

Stocked as 11780375-01 and sold individually. Unit weight is approximately 1 lb. Review your operating media and conditions against this specification before installation. If you need a size, durometer or compound that is not listed, APG can cross-reference from a print, a sample or a competitor part number.
