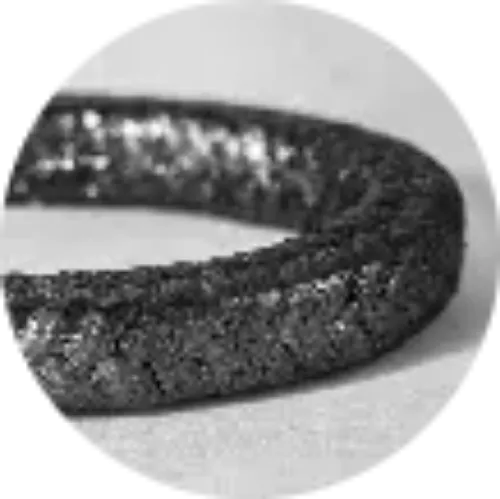

3/8" NON-ASBESTOS GRAPHITE PACKING

The 11890375-10 is a Square Braided Non-Asbestos Packing Compression Packing with a 3/8 inch square cross section. This compression packing is cut into rings and stacked in a stuffing box, then compressed by the gland to seal a rotating or reciprocating shaft. Supplementary detail from the product record: 10 LB. Box - Approx. 149 FT.

Square Braided Non-Asbestos Packing is specified here for braided construction that conforms to the stuffing box and field-cuttable rings for fast, inexpensive repacking. Expect good resistance to elevated temperature and pressure, shaft wear, and process media. It is not the right choice where over-tightening of the gland or running dry without flush are present.

Typical settings include water and process plants, mixers and rotary equipment, and valves and agitators.

Stocked as 11890375-10 and sold individually. Unit weight is approximately 10 lb. Check the compound against your process media, pressure and temperature before committing to a design. APG can cross-reference from an existing part number, a drawing or a physical sample if this size is not an exact match.
