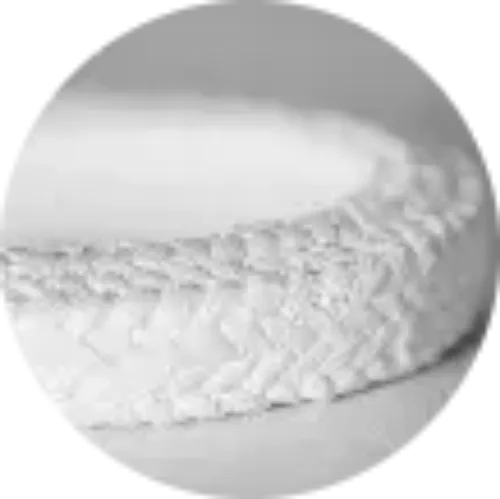

5/16" PTFE NON-ASBESTOS PACKING

11730312-01 is a TFE Impregnated Non-Asbestos Packing Compression Packing with a 5/16 inch square cross section. In service, this compression packing provides field-serviceable shaft sealing that can be adjusted and topped up without disassembling the pump. Supplementary detail from the product record: 1 LB. Box - Approx. 17 FT.

As a material, TFE Impregnated Non-Asbestos Packing is specified for non-stick, non-contaminating surface characteristics and a very wide continuous service temperature range. This material stands up to solvents, nearly all industrial chemicals, and oxidizing media. Verify compatibility before use with elemental fluorine at temperature or service requiring elastic recovery.

Common environments for this compound include food and beverage, semiconductor fabrication, and aggressive-media pipelines.

11730312-01 ships individually. Unit weight is approximately 1 lb. Check the compound against your process media, pressure and temperature before committing to a design. If you need a size, durometer or compound that is not listed, APG can cross-reference from a print, a sample or a competitor part number.
