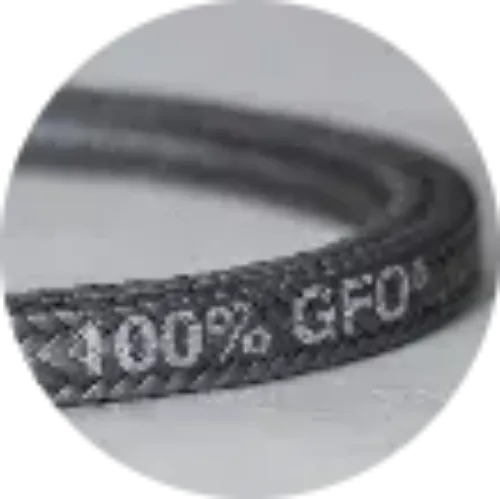

*7/16" PURE GRAPHITE YARN FIBER PACKING

The 11750437-10 is a Graphite Filament Packing Compression Packing supplied with a 7/16 inch square cross section. This compression packing is cut into rings and stacked in a stuffing box, then compressed by the gland to seal a rotating or reciprocating shaft. Source specification: 10 LB. Box - Approx. 180 FT.

It resists most chemicals across the pH range, thermal shock, and fire exposure. Graphite Filament Packing delivers excellent thermal conductivity and fire resistance, exceptional temperature capability well beyond elastomeric materials. It should not be specified for service in strong oxidizing acids or highly oxidizing service above rated temperature.

Maintenance and OEM teams specify it across refining, high-temperature process piping, and power generation.

11750437-10 ships individually. Unit weight is approximately 10 lb. As always, verify media compatibility and operating conditions against the requirements of your specific application. If you need a size, durometer or compound that is not listed, APG can cross-reference from a print, a sample or a competitor part number.
