-009 BLACK AFLAS 80D O-RING

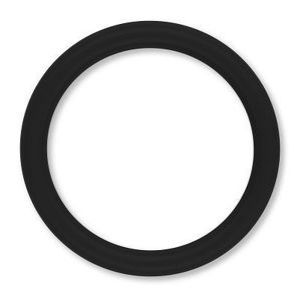

Part number A80009 is an AS568-009 black Aflas (TFE/P) 80 Shore A O-Ring with an inside diameter of 0.208 in (5.28 mm), a cross section of 0.07 in (1.78 mm), and an outside diameter of 0.348 in (8.84 mm). An o-ring seats in a machined groove and forms a leak-tight barrier when compressed between two mating surfaces.

As a material, Aflas (TFE/P) is valued for proven performance in aggressive downhole environments and strong resistance to rapid gas decompression. It resists hot water, strong bases, and sour gas and hydrogen sulfide. Rated temperature range runs from -25°F (-31.7°C) to 450°F (232.2°C) in continuous service. It should not be specified for service in low-temperature dynamic service or some chlorinated solvents.

Typical settings include downhole tooling, geothermal equipment, and chemical processing.

A80009 ships individually. Unit weight is approximately 0.0888 g. Review your operating media and conditions against this specification before installation. APG can cross-reference from an existing part number, a drawing or a physical sample if this size is not an exact match.
