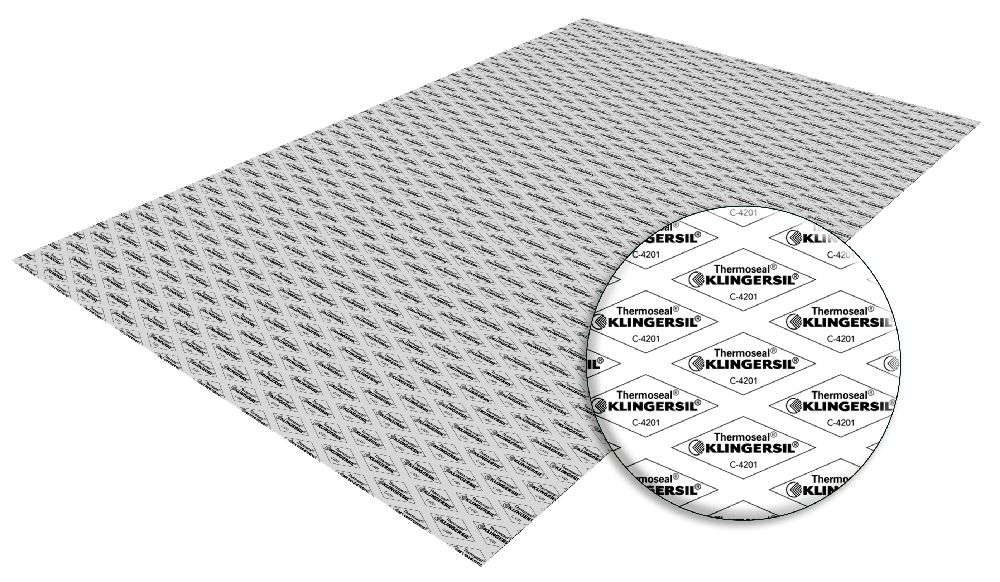

APG's C-4201 - Compressed Non-Asbestos Sheets with Nitrile Binder is a general application gasket material that offers excellent resistance to oils and solvents and is an excellent choice for OEM applications. This compressed fiber gasket material is manufactured with a combination of synthetic fibers reinforced with a nitrile binder.
Performance & Applications
Performance
Max Temperature: 450º
Continuous Max with Steam: 375º
Applications
Oils & Solvents
Chemical Products
Water
Low Temperature Steam
Product Specifications
Typical Values Refer to 1/16'' Thick Material Unless Noted
| Creep relaxation ASTM F38B (1/32") | 20 % |
| Sealability ASTM F37A (1/32") | < 0.5 ml/hr |
| Gas Permeability DIN 3535/6 | < 0.5 ml/min |
| Compressibility ASTM F36J | 7 - 17 % |
| Recovery ASTM F36J | 50 % |
| KLINGER Hot Compression Test | |
| 1 Thickness Decrease 73ºF (23ºC) | 1 16 % initial |
| 2 Thickness Decrease 572º F (300ºC) | 2 20.5 % additional |
| Weight increase ASTM F146 after immersion in | |
| Fuel B, 5h/73ºF (23ºC) | 10 % maximum |
| Thickness Increase ASTM F146 after immersion in | |
| 1 ASTM Oil IRM 901, 5h/300ºF (149ºC) | 1 0 - 5 % |
| 2 ASTM Oil IRM 903, 5h/300ºF (149ºC) | 2 0 - 5 % |
| 3 ASTM Fuel A, 5h/73ºF (23ºC) | 3 0 - 5 % |
| 4 ASTM Fuel B, 5h/73ºF (23ºC) | 4 0 - 5 % |
| Dielectric Strength ASTM D149-95a | 14 kV/mm |
| Density ASTM F1315 | 119 lb/ft³ (1.9 g/cc³) |
| Leachable Chloride Content FSA Method | 200 ppm |
| ASTM F104 Line Call Out | F712121B3E11K6M5 |
| Color | Black or White |
Pressure/Temperature Graphs
The pressure/temperature graphs shown are the most current method of determining the suitability of a gasket material in a known environment. However, chemical compatibility must also be considered.
pT diagram for thickness 1/16?:

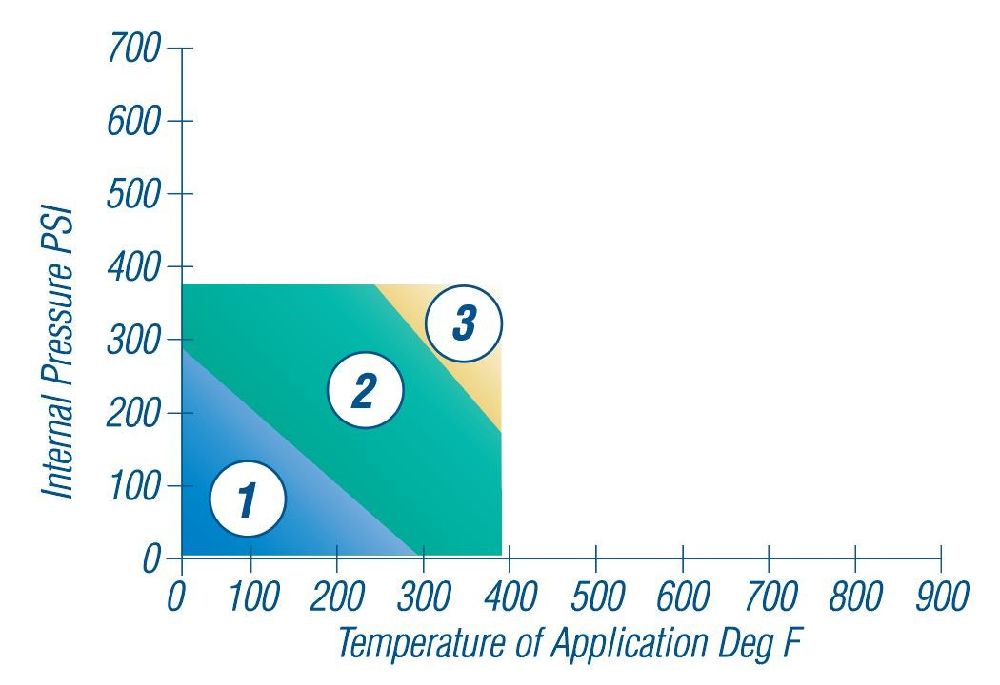

Gases & Steam

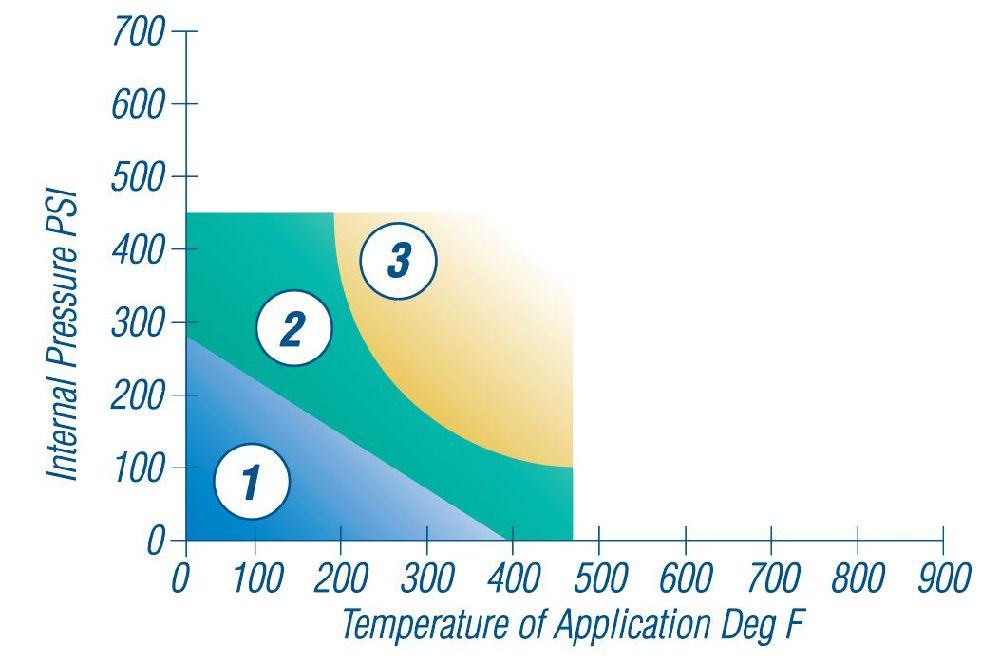

Liquids
In area 1 the gasket material is suitable using common installment practices subject to chemical compatibility
In area 2 appropriate measures are necessary for installation of the gasket to ensure maximum performance.
In area 3 do not install gaskets in these applications without first contacting APG for technical support service.
