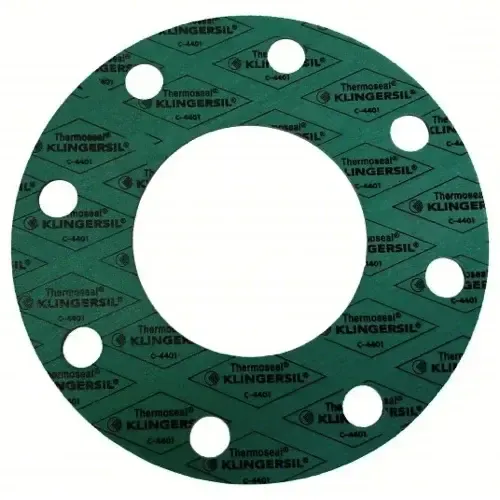

GASKET, KLNGR C4401, 10.00" 150# FF

Ordered as 13850FF062A1000, this is a green Klingersil C-4401 Class 150 full face Flange Gasket supplied with a 10 inch nominal pipe size, a Class 150 pressure rating, and a thickness of 0.062 inch. The flange gasket seals a bolted flange connection across the full pressure rating of the class. Additional detail on this item: NPS, 0.062 THK.

Klingersil C-4401 is specified for consistent thickness and density across the sheet, excellent torque retention and low creep relaxation. Expect good resistance to hydrocarbons, steam and hot water, and elevated flange loads. Applications involving service beyond the published pressure-temperature envelope or strong oxidizing acids in some grades call for a different compound.

Common environments for this compound include pulp and paper, power generation, and chemical processing.

This item is sold individually under part number 13850FF062A1000. Check the compound against your process media, pressure and temperature before committing to a design.
